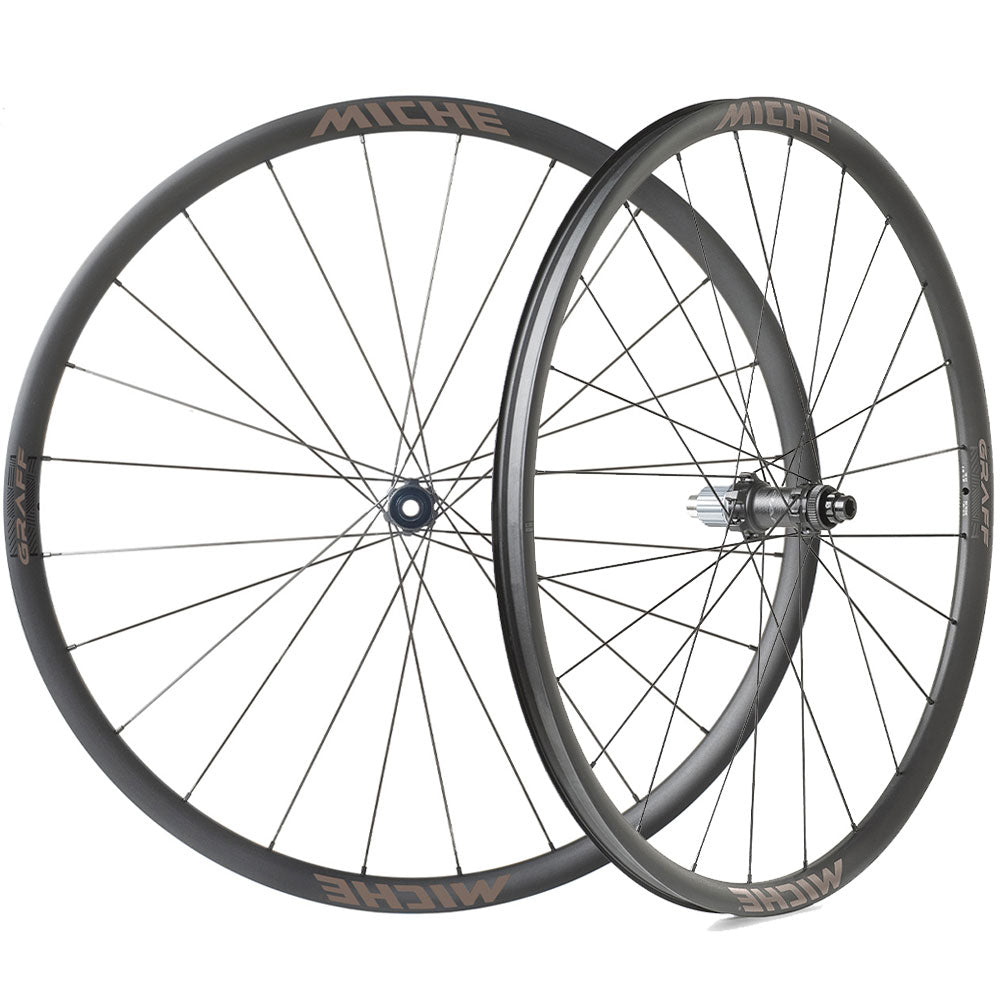

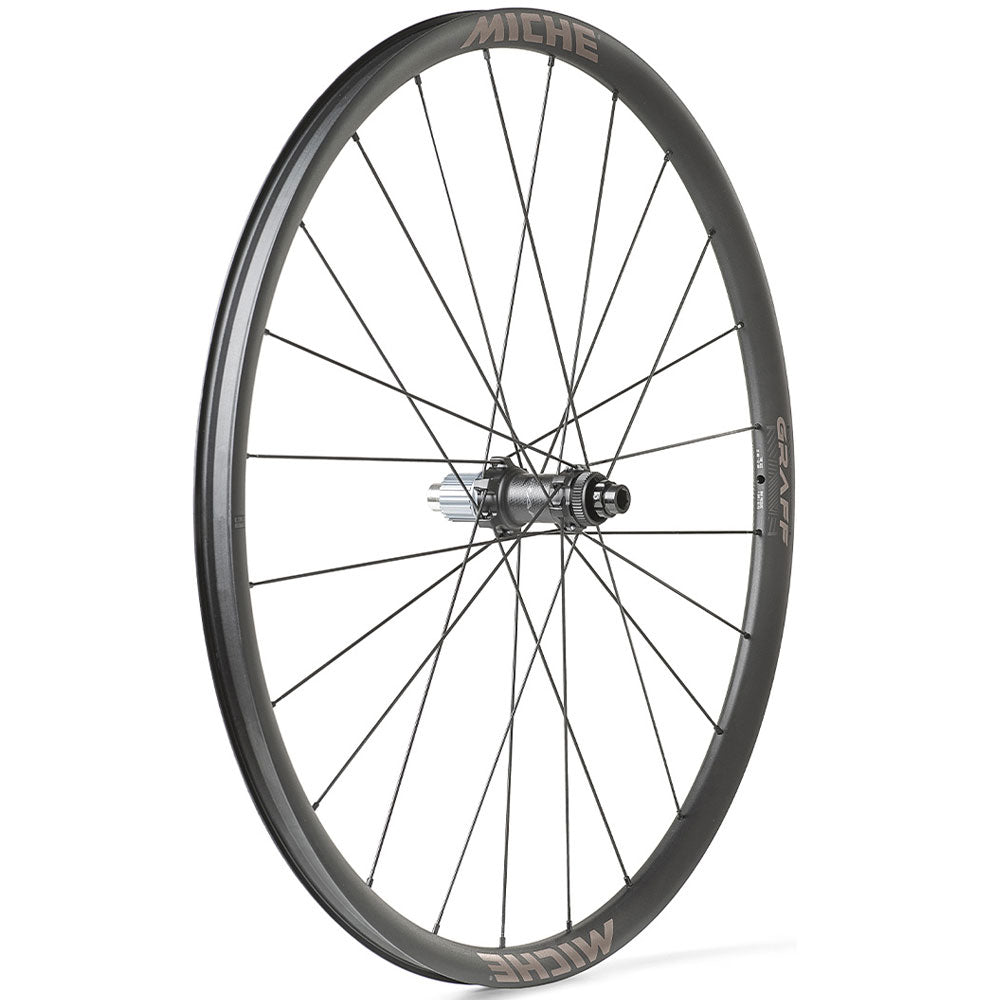

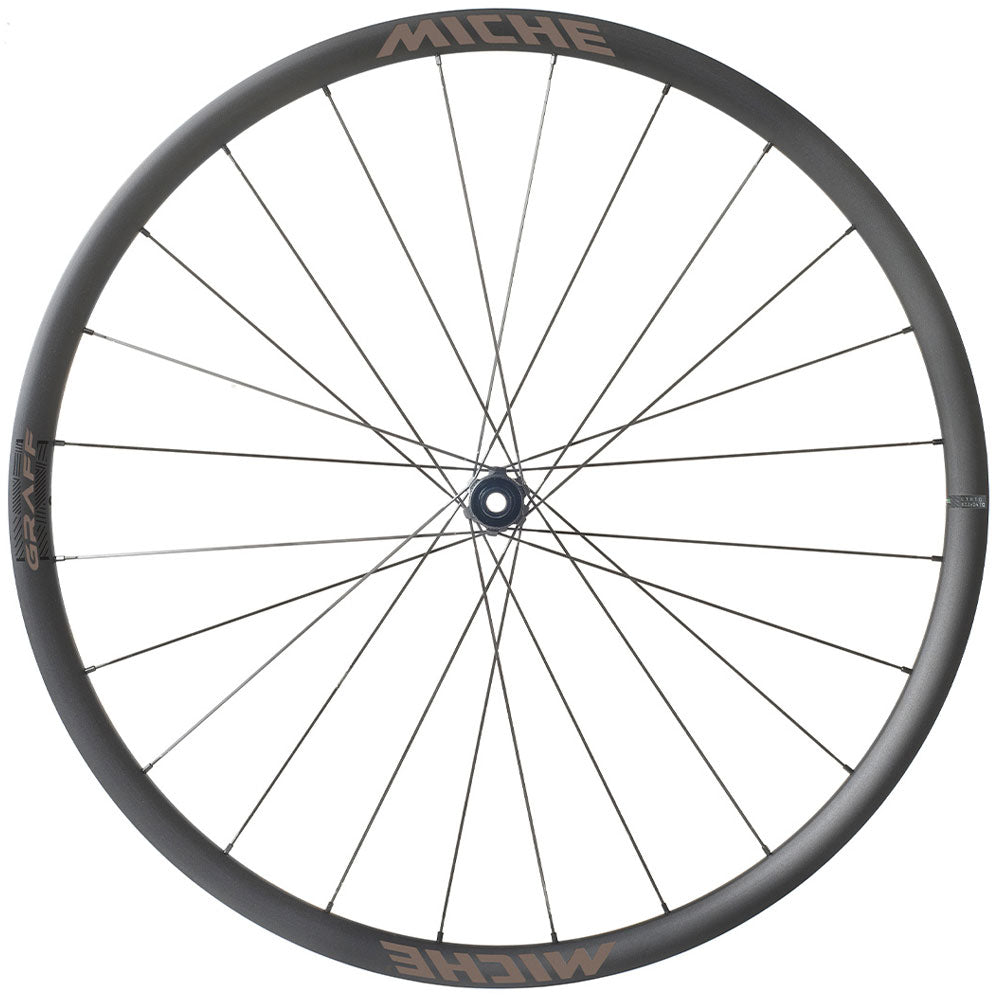

Miche Graff Tubeless Disc Wheels
Designed for gravel and adventure riders, this wheelset delivers durability, responsiveness, and tubeless-ready versatility.
The rim is Tubeless Ready, finished with a sandblasted surface and optimised for tyres between 35 mm and 50 mm, offering a perfect balance of grip, comfort, and control. It comes fitted with a pre-assembled tubeless kit, quality-checked by Miche for peace of mind.
At the heart of the wheel, CNC-machined AL7075 T6 hubs use a 12+12 spoke pattern and high-smoothness sealed bearings to deliver consistent, reliable performance. You can fine-tune hub smoothness—even with the wheel mounted, thanks to a special adjustment ring. For disc brake compatibility, use the original Shimano lock ring designed for thru axles with a 27 mm hole.
Technical Specifications
- Weight: 1735g (Tubeless Ready Kit + 20)
- Rim Material: Alloy
- Spokes: Stainless steel black, aero, straight pull, double butted
- Tyre Type: Clincher and Tubeless
- Braking System: Disc Centre Lock
- Rim profile: 25mm
- Max Load + user: 108kg
- Bearings: Miche Steel Sealed
- Included accessories: Instruction manual, Flap (only for clincher version)
Tubeless-Ready Asymmetric Rim
The Graff XL Disc features a 24C asymmetric rim profile that’s Tubeless Ready and finished with a durable sandblasted surface. It’s optimised for tyres between 35 mm and 50 mm, offering excellent grip, comfort, and control across gravel, dirt, and mixed terrain. The asymmetric design improves spoke tension balance, enhancing overall wheel strength and stability.
CNC-Machined Hubs with Sealed Bearings
Crafted from lightweight yet strong AL7075 T6 alloy, the hubs are CNC-machined for precision and durability. They use a 12+12 spoke pattern for even load distribution and improved torsional rigidity, giving riders a more responsive feel. High-smoothness sealed bearings ensure consistent performance, while a special ring nut allows easy hub adjustment-even with the wheel mounted.
Miche Graff Tubeless Disc Wheels
Colour: BlackSize: N3W-Pair
Workshop-backed adviceHelp from people who work on bikes every day.
Compatibility helpAsk us to check the fit before you order.
Secure checkoutSimple and protected online ordering.
UK supportFriendly support from our Gloucestershire shop.
Product guide
Everything you need to know.
Clear product information, specifications and practical details to help you buy with confidence.
Ask about this productMiche Graff Tubeless Disc Wheels
Designed for gravel and adventure riders, this wheelset delivers durability, responsiveness, and tubeless-ready versatility.
The rim is Tubeless Ready, finished with a sandblasted surface and optimised for tyres between 35 mm and 50 mm, offering a perfect balance of grip, comfort, and control. It comes fitted with a pre-assembled tubeless kit, quality-checked by Miche for peace of mind.
At the heart of the wheel, CNC-machined AL7075 T6 hubs use a 12+12 spoke pattern and high-smoothness sealed bearings to deliver consistent, reliable performance. You can fine-tune hub smoothness—even with the wheel mounted, thanks to a special adjustment ring. For disc brake compatibility, use the original Shimano lock ring designed for thru axles with a 27 mm hole.
Technical Specifications
- Weight: 1735g (Tubeless Ready Kit + 20)
- Rim Material: Alloy
- Spokes: Stainless steel black, aero, straight pull, double butted
- Tyre Type: Clincher and Tubeless
- Braking System: Disc Centre Lock
- Rim profile: 25mm
- Max Load + user: 108kg
- Bearings: Miche Steel Sealed
- Included accessories: Instruction manual, Flap (only for clincher version)
Tubeless-Ready Asymmetric Rim
The Graff XL Disc features a 24C asymmetric rim profile that’s Tubeless Ready and finished with a durable sandblasted surface. It’s optimised for tyres between 35 mm and 50 mm, offering excellent grip, comfort, and control across gravel, dirt, and mixed terrain. The asymmetric design improves spoke tension balance, enhancing overall wheel strength and stability.
CNC-Machined Hubs with Sealed Bearings
Crafted from lightweight yet strong AL7075 T6 alloy, the hubs are CNC-machined for precision and durability. They use a 12+12 spoke pattern for even load distribution and improved torsional rigidity, giving riders a more responsive feel. High-smoothness sealed bearings ensure consistent performance, while a special ring nut allows easy hub adjustment-even with the wheel mounted.
